Description

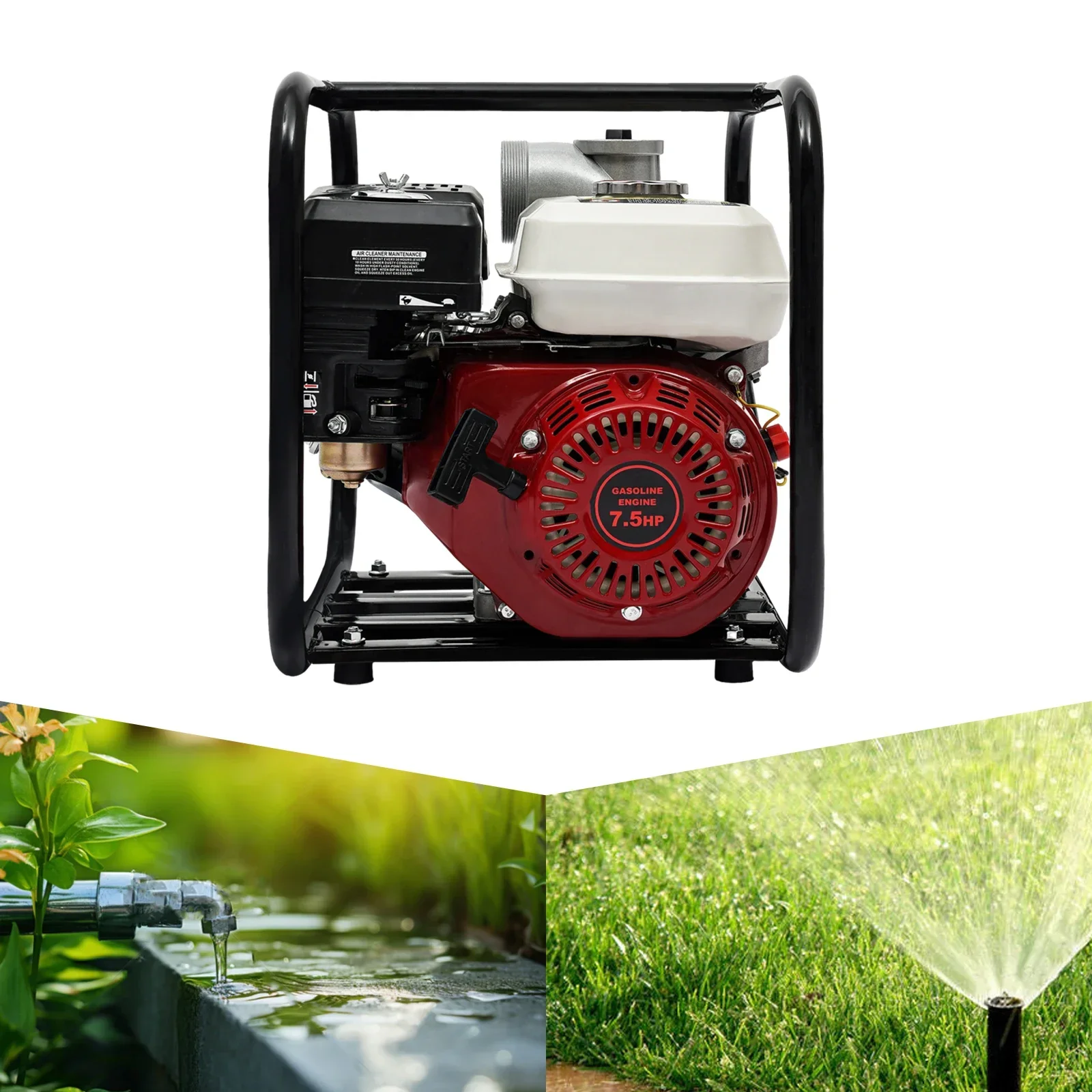

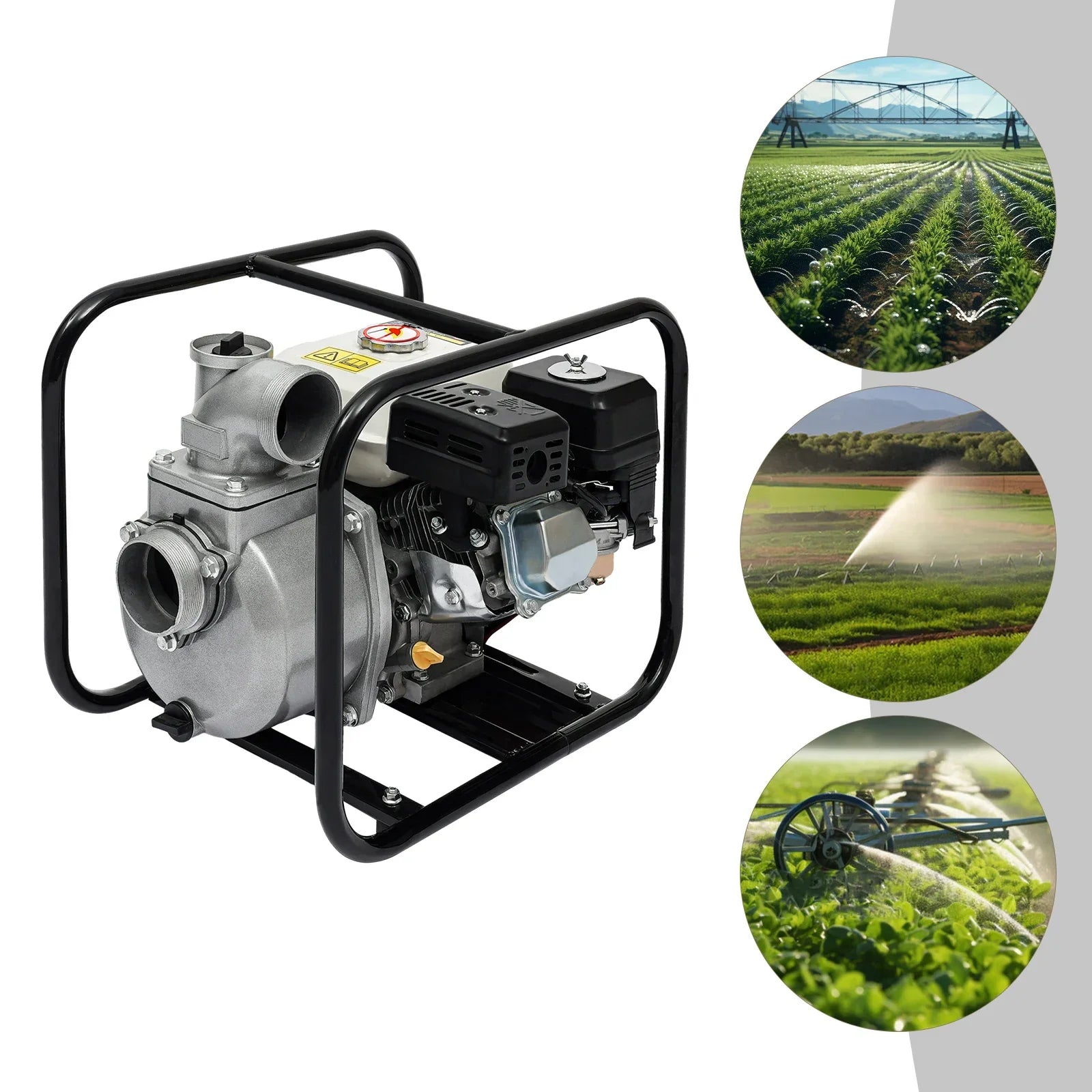

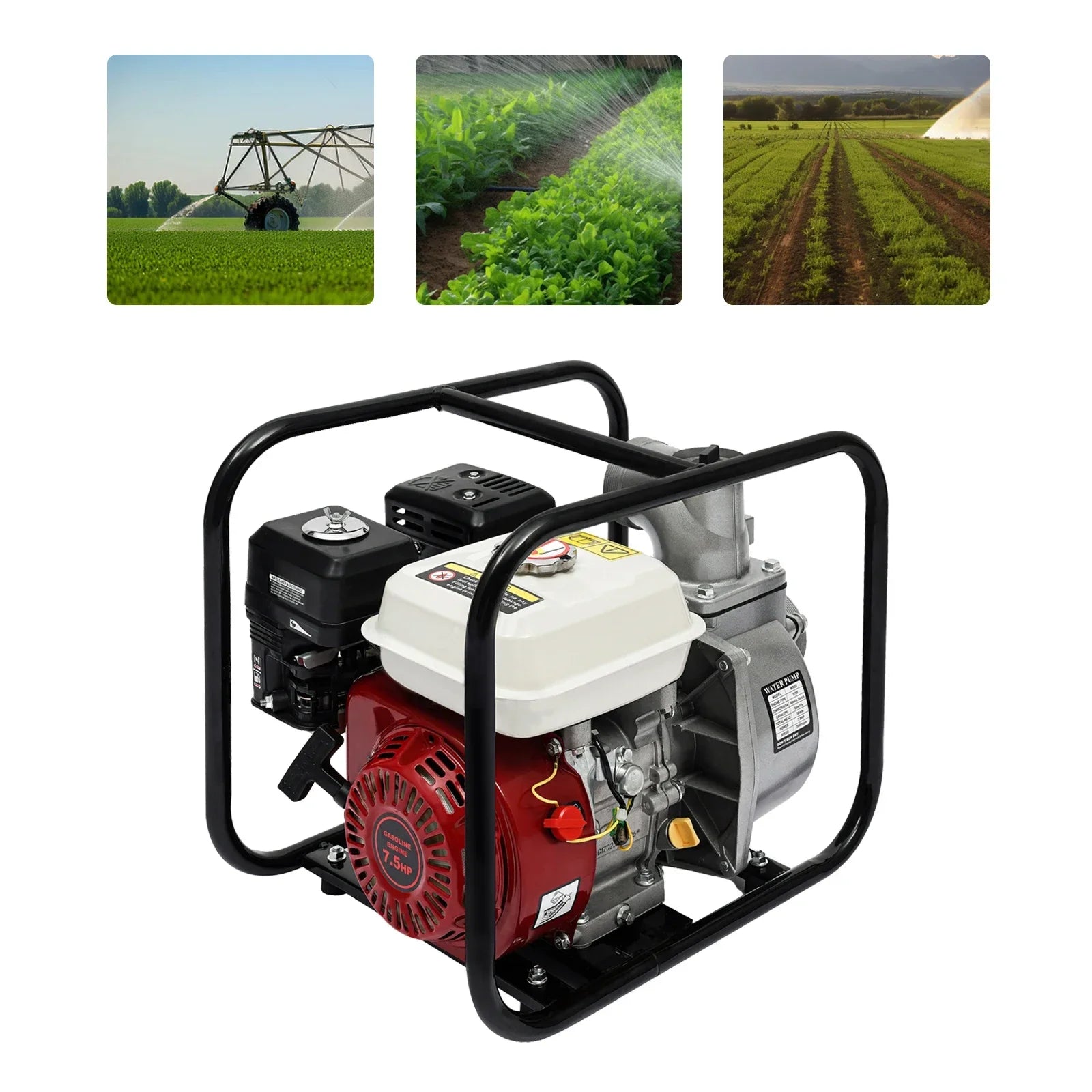

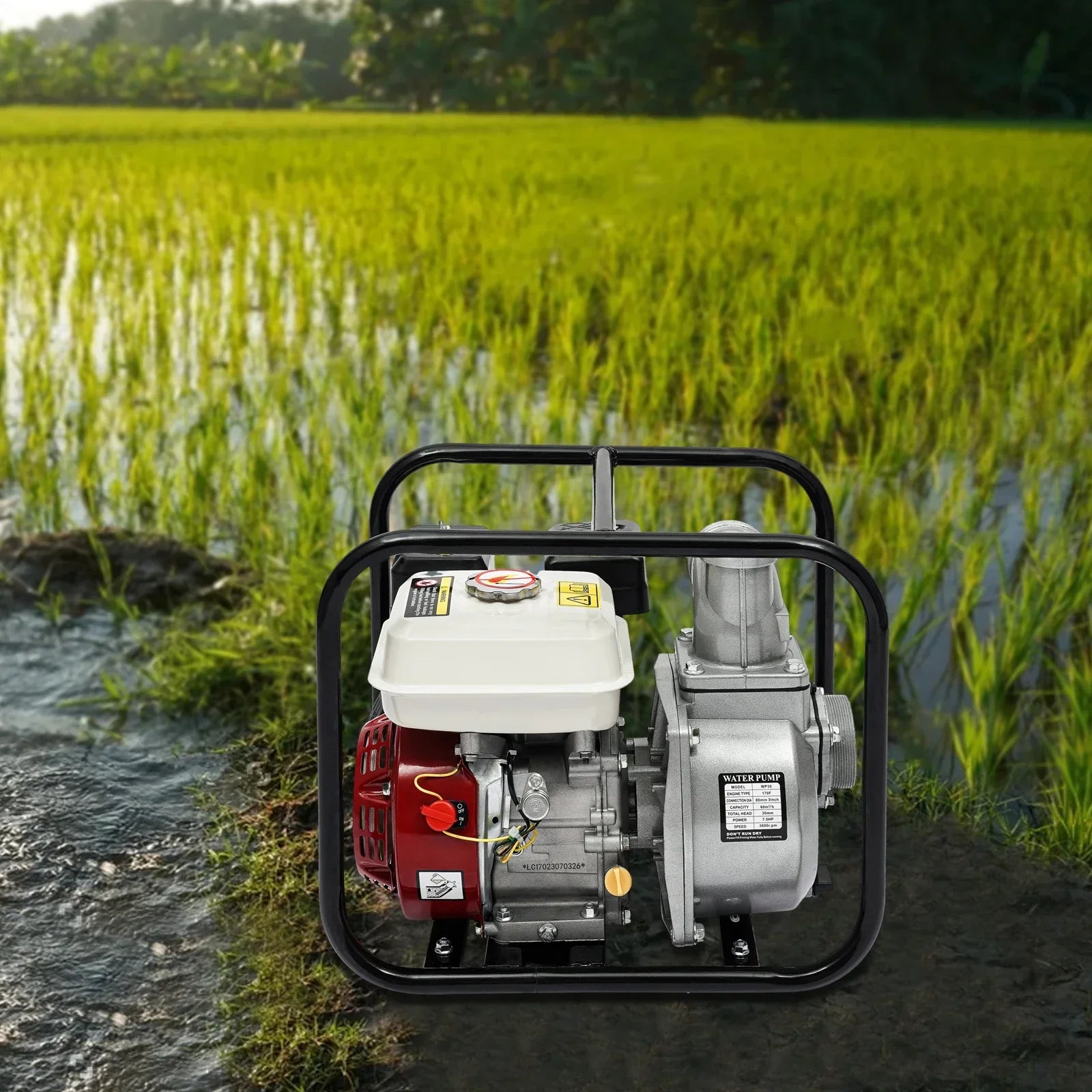

No matter if you need to water the farmland, give abundant vegetation the necessary irrigation, or put out fires, this top-notch water transfer pump is a reliable helper that won't let you down and will surpass what you anticipate. Its 7.5HP, 4-stroke engine with a 210cc displacement generates ample power, enabling efficient water pumping operations and enhancing your overall work productivity.

Specification

Material: Aluminum Alloy and Iron
Color: Black, Silver, White, Red
Processes: Polishing, Spray Molding, and Galvanizing
Assembly Required: Yes
Number of Items: 1

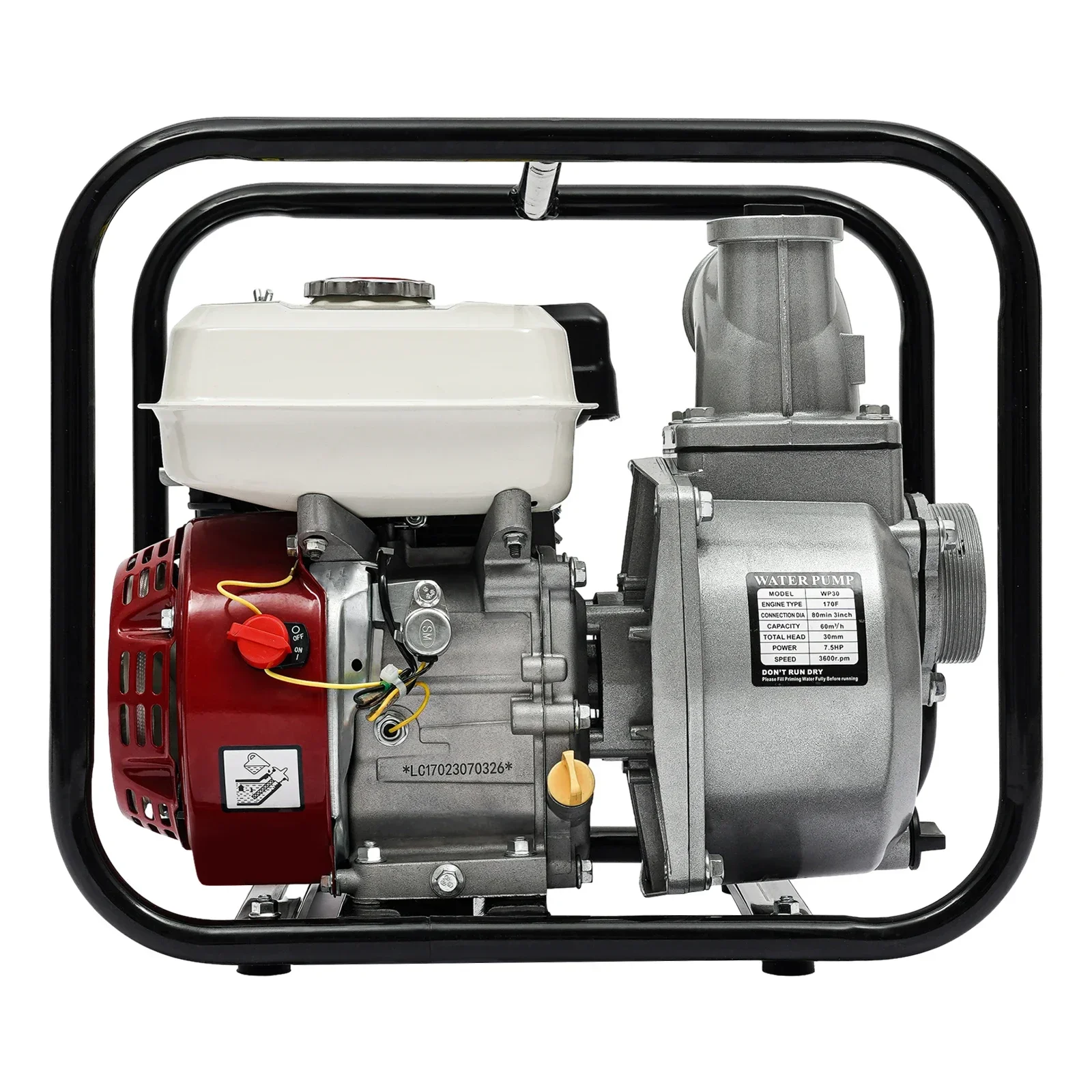

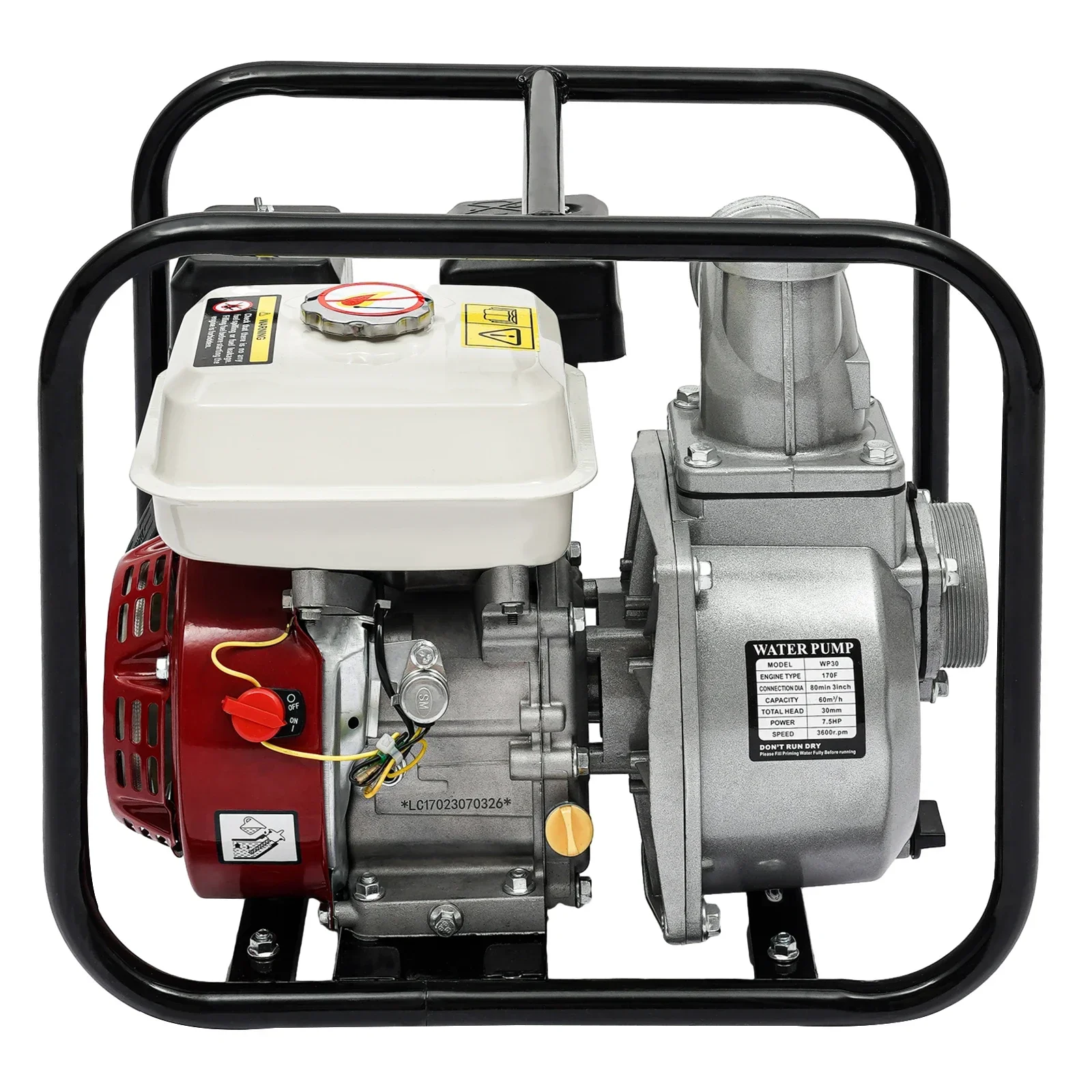

Model: WP30
Engine Type: 170F

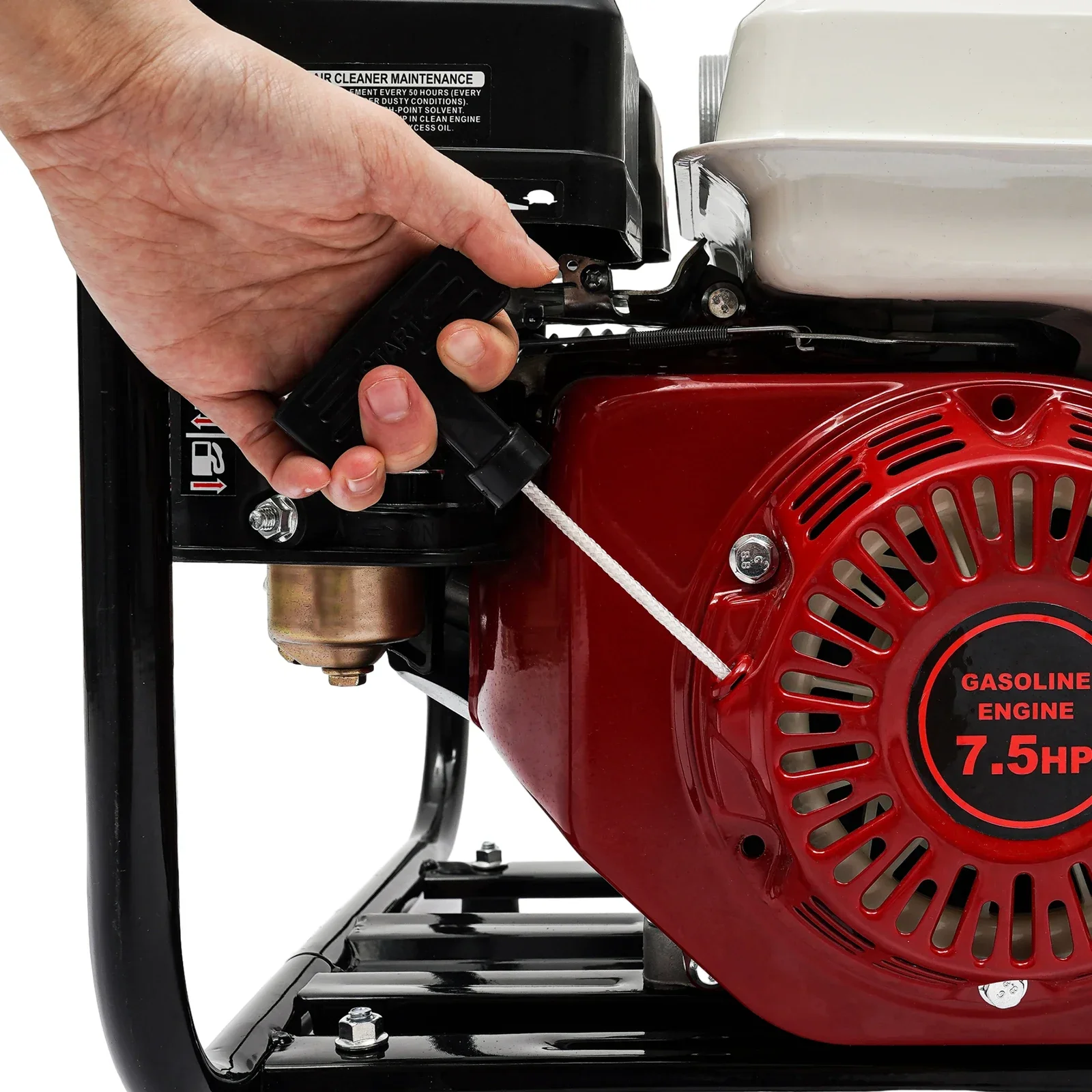

Start Method: Recoil Start
Output Mode: Direct Connection
Engine Type: Single Cylinder, Air-cooled, Four Stroke
Power Source: Gasoline
Connection Diameter: 80mm/3in
Capacity: 60m³/2118.88ft³/h
Total Head: 30mm/1.18in
Displacement: 210cc

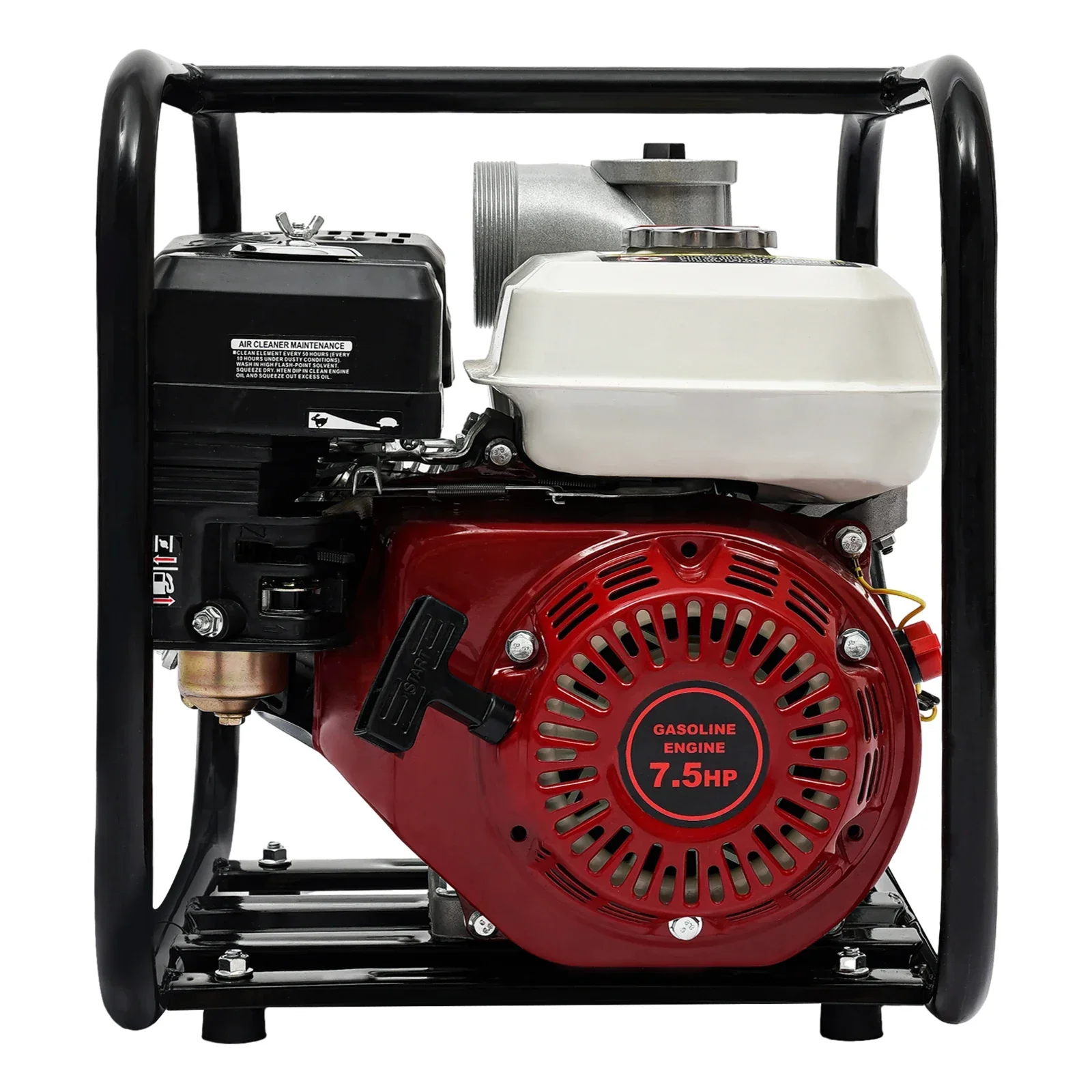

Power: 7.5 HP, 5.5kw
Speed: 3600rpm
Oil Pot Capacity: 3.6L/0.95gal
Max. Water Pumping Capacity: 1000L/264gal/min
Suction Force: 0.08mpa
Lifting Height: 28m/91.86ft
Maximum Suction Lift: 7m/22.96ft

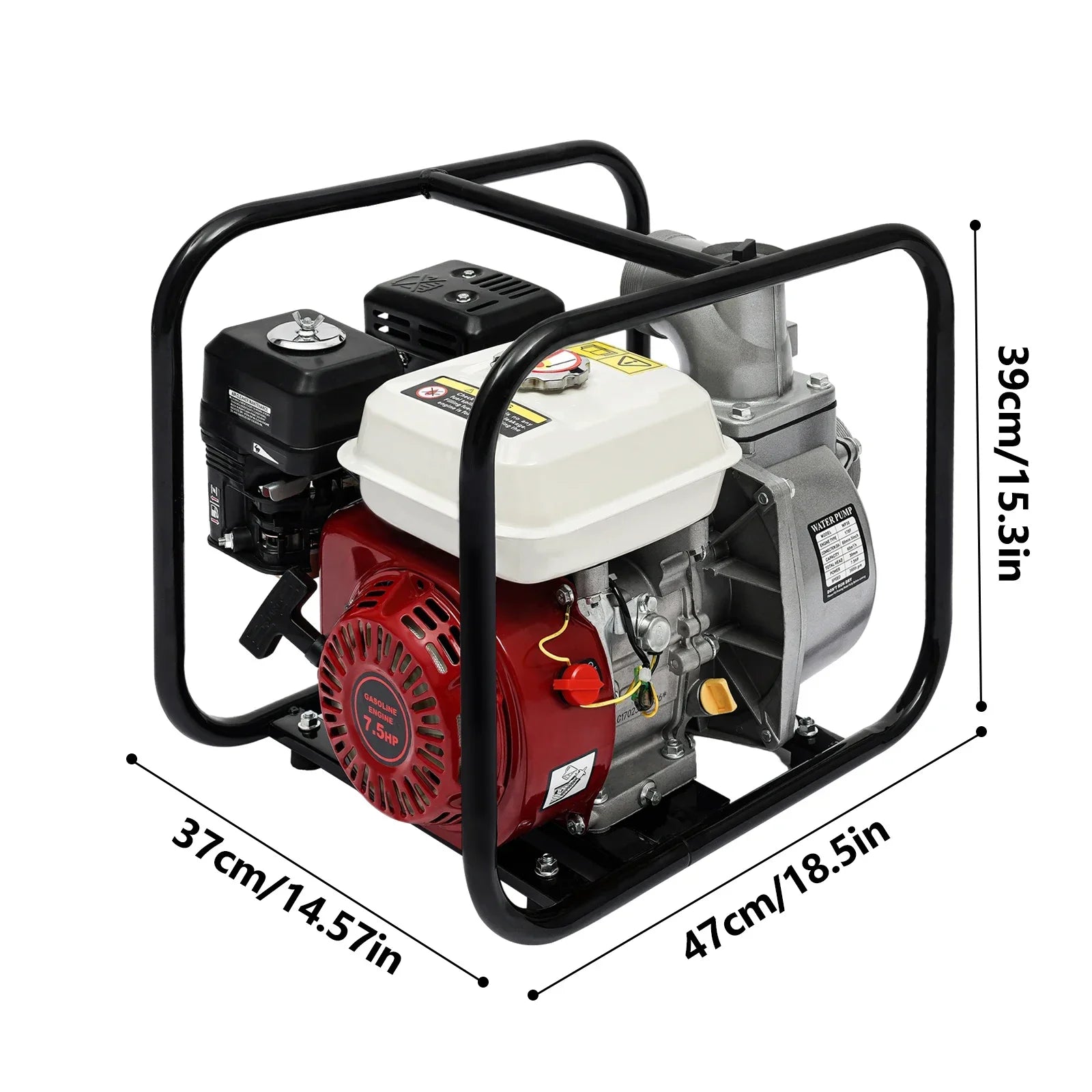

Product Size: 47*37*39cm/18.5*14.57*15.3in
Package Size: 51*39*43cm/20.08*15.35*16.93in
Gross Weight: 22kg/48.5lb
Net Weight: 21kg/46.3lb

Package Included

1*Water Transfer Pump
1*English Manual
All Accessories Required for Installation

Details

Outer Frame: The sturdy outer frame with smooth and round edges makes it convenient for you to move the product.

Practical Filter: It can help filter impurities in water, prevent clogging of the machine, and reduce wear and cleaning trouble.

Large Water Inlet and Outlet: The pump adopts a 3-inch large diameter water inlet and outlet, allowing large flow.

Hose Clamps: They can help you firmly fix the water pipe(not included) and prevent it from loosening and leaking due to strong water impact.

Key Features

Durable Construction: Comprising primarily an aluminum alloy pump body and an iron frame, this product utilizes polishing, spray molding, and galvanizing techniques. These processes endow it with high hardness, excellent wear resistance, strong corrosion resistance, rust prevention capabilities, and ensure a long-lasting service life.

Enhanced Safety Features: The aluminum alloy pump body, combined with numerous heat dissipation holes, efficiently dissipates heat in a timely manner, preventing burnout or malfunctions and ensuring safe operation. The built-in oil protector prevents cylinder pulling and bursting caused by not adding oil or insufficient oil, making it reliable and safe to use.

Efficient Water Pumping Performance: Boasting a 7.5HP high-power engine with a 210cc displacement, this unit reaches a rotation speed of 3600rpm. It enables rapid water pumping from rivers or ponds. With a suction height of 22.97ft and a total lift height of 91.86ft, it ensures reliable and high-performance irrigation, boosting your efficiency and saving you valuable time.

Low Fuel Consumption: Four-stroke machines, in contrast to two-stroke models, consume a reduced amount of fuel, making them more energy-efficient and cost-effective in terms of fuel consumption.

Ample Capacity: With an oil pot capacity of 0.95 gallons, this product caters to your requirements for continuous operation.

Notes

1.This product does not include water hoses.

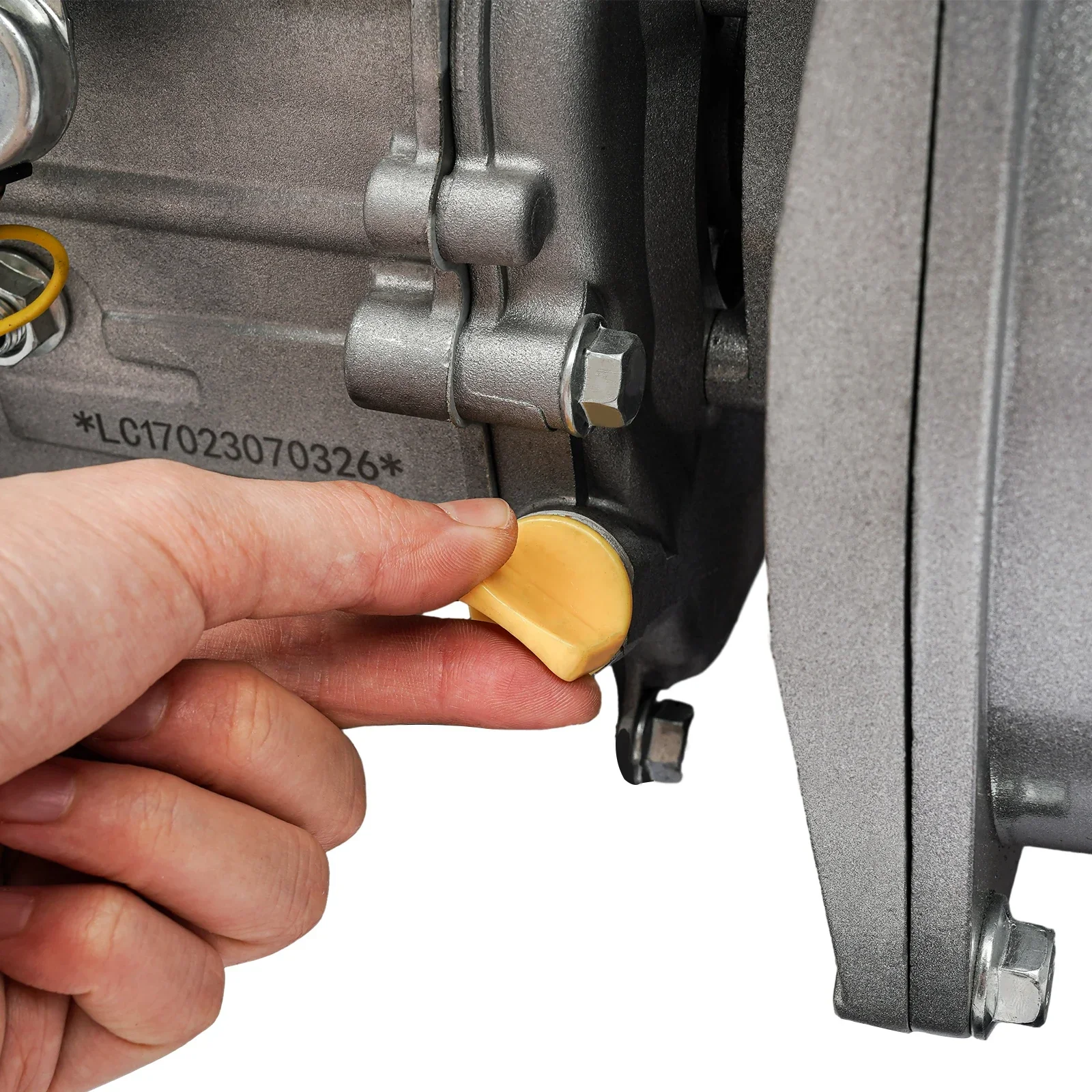

2.Please fill the priming water fully before running, don't run dry. When using it for the first time, it is necessary to change the oil every 5-10 hours, otherwise, impurities in the oil will block the crankshaft.
3.Please check for fuel spillage or leakage before starting. Please add gasoline only when it is cooled. Please use the correct model of engine oil, genuine factory products, and clean engine oil. Gasoline should also be free of impurities.
4.Gasoline engines are prohibited from stopping at high speeds and should be stopped when the throttle is lowered to the lowest possible level.
5.The air filter element should be regularly inspected and replaced, and the dirty element should be cleaned with soapy water and dried in the shade before use. The cremation plug generally does not need to be replaced. If carbon accumulates, remove it and scrape it off with a knife.
6.If the machine is ready to be out of use for a long time, please do not directly turn off the gasoline engine switch, please turn off the throttle switch and consume all the gasoline in the carburetor; If not consumed completely, maintaining oil in the carburetor for a long time can lead to oxidation of the carburetor.
7.Even if using a fan or opening doors and windows for ventilation, please do not operate this product in your home, garage, basement, crawling space, shed, or other partially enclosed spaces.
8.Please read the operating manual and product label carefully before use and pay attention to the safety instructions included.
9.Please allow the slight color difference caused by the shooting light and the 1-3 cm error due to manual measurement, and make sure you do not mind before ordering.
