SPECIFICATIONS

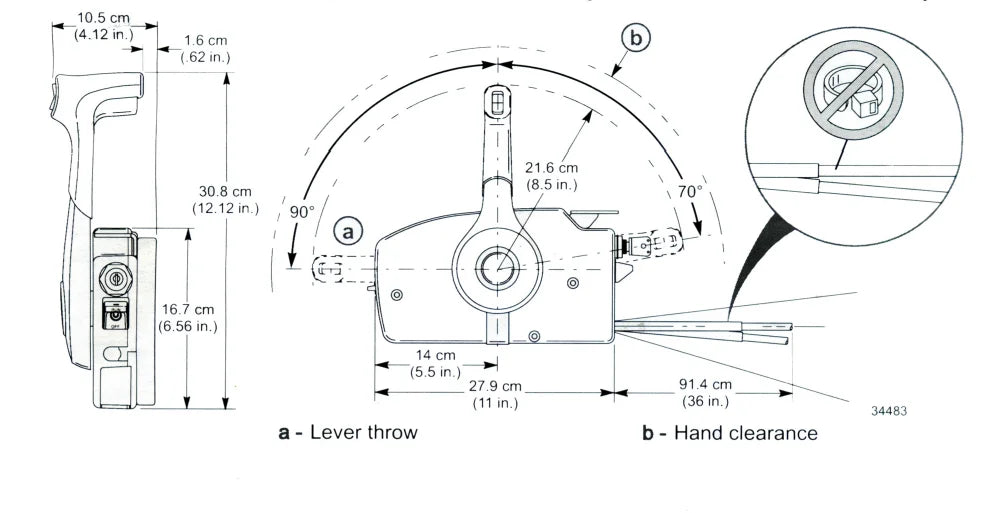

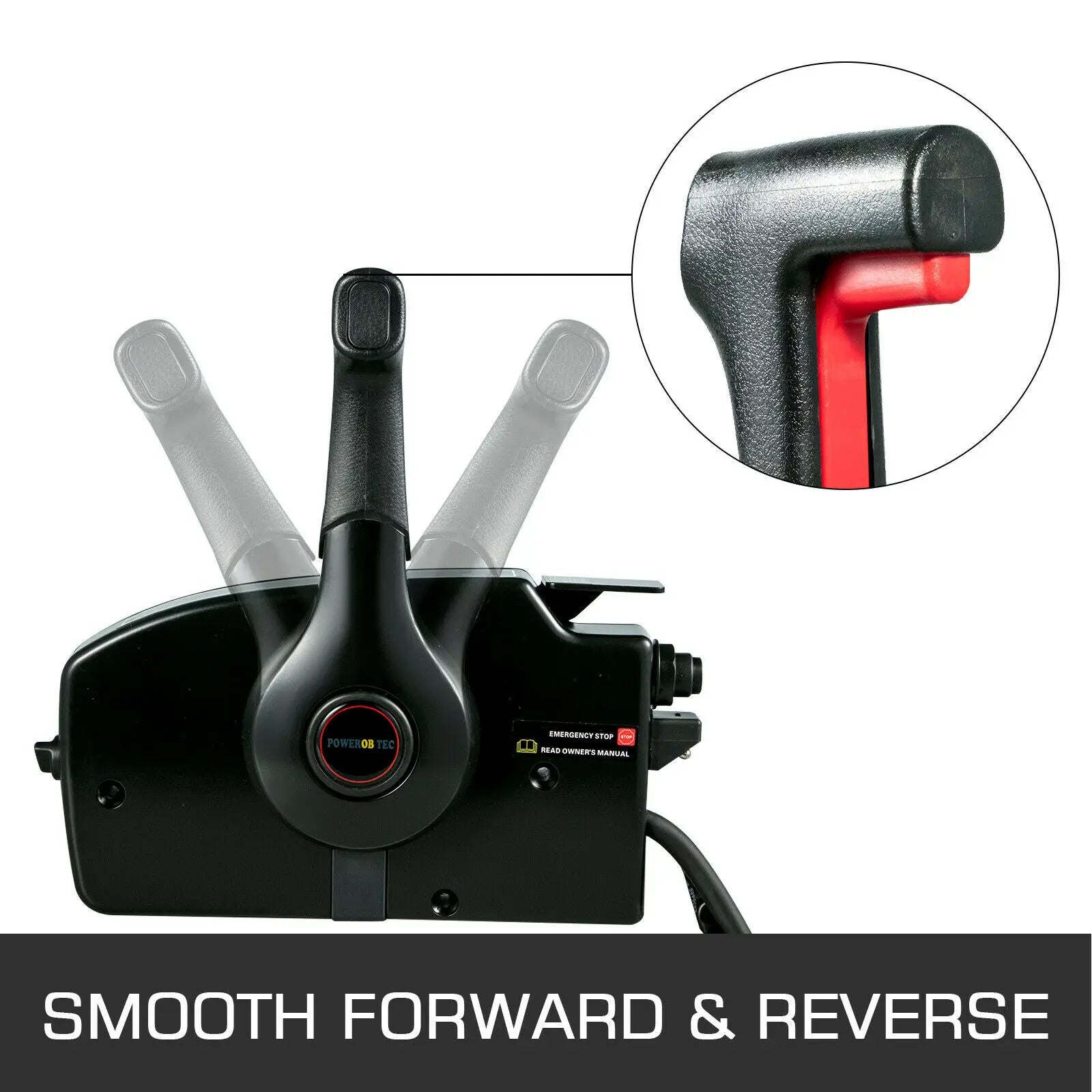

1. Control handle: Lift the neutral lock release and shift into gear with a firm, quick motion. Approximately the first 32° of control handle travel (from neutral position) will shift the gears, the remainder of control handle travel advances the throttle

2. Neutral lock release: The neutral lock prevents accidental shifting of the remote control from the neutral position. The neutral lock release must be lifted to shift the remote control.

3.Trim switch: No Tirm Switch

4.Fast idle lever: Assists in starting a cold engine (with carburetors). When the engine is cold, place control handle in neutral and lift the lever. This provides a higher RPM for starting a cold engine. The fast idle lever can be lifted only when the control handle is in neutral.

5.Ignition / choke switch : Start the engine by turning the ignition key clockwise to theSTART position . On models that have a choke , pushing the ignition key in willactuate the choke . Release the ignition key and allow the switch to return to the " RUN'position . Stop the engine by turning the ignition key counterclockwise to the " OFFposition

6.Throttle friction adjustment knob : Adjust throttle friction by turning the knobclockwise to increase friction , or counterclockwise to decrease friction

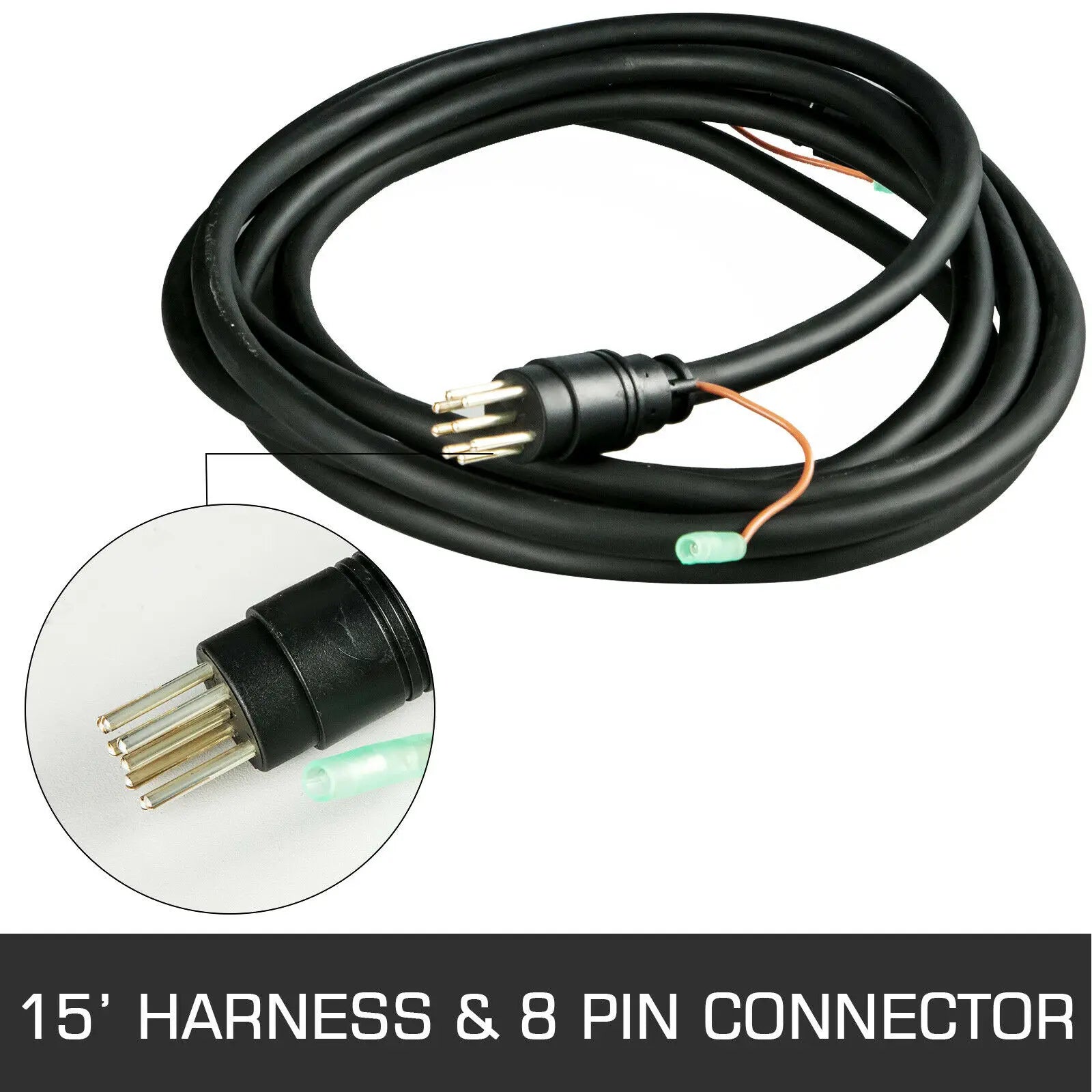

7.Tachometer wiring harness receptacle : Provides a convenient connection fortachometer / instrumentation hook up

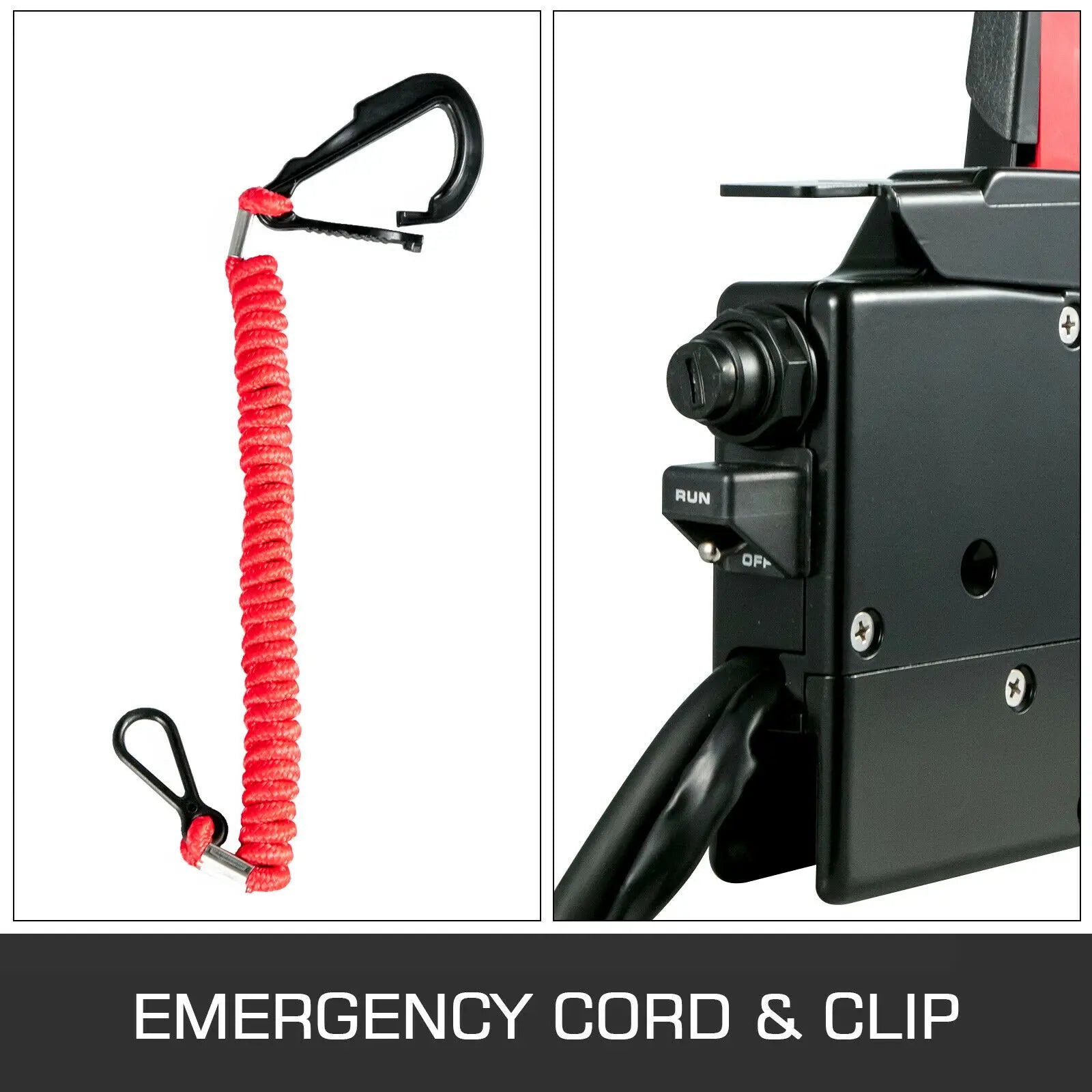

8.Lanyard stop switch: The purpose of a lanyard stop switch is to turn off the engine when the operator moves far enough away from the operator's position (as in accidental ejection from the operator's position) to activate the switch.
