SPECIFICATIONS

Built-in Microphone: Built-in Microphone, record with audio

Lens: Dual lens: 2 mm

PCS of Camera: 16pcs

Resolution: 8MP

Supplement Light: Smart light, white light, IR light

Video Bit Rate: 32 Kbps to 16 Mbps

Video Input: 16 Channel

Weatherproof Rating: IP67

 Camera Key features

★ High quality imaging with 8 MP resolution

★ One image that presents all the scenes covered by the camera

★ Provide real-time security via built-in two-way audio

★ Efficient H.265+ compression technology

★ Focus on human and vehicle classification based on deep learning

★ Clear imaging against strong back light due to 120 dB WDR technology

★ Active strobe light and audio alarm to warn intruders off

★ Smart Hybrid Light: White light & IR light up to 30 m

★ Support 512 GB TF storage space

★ Water and dust resistant (IP67)

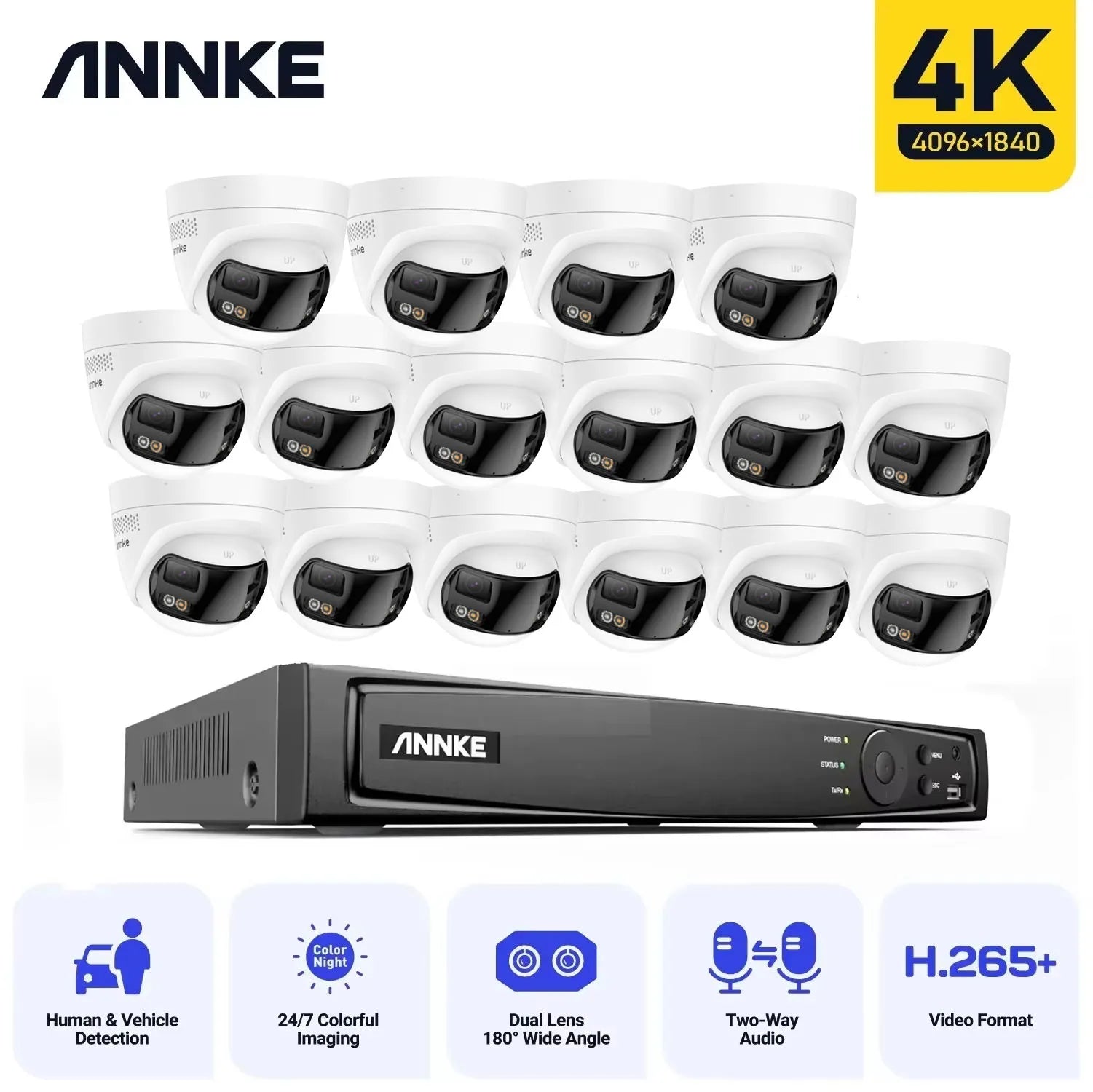

 NVR Key features

· Live view, recording&playback up to 8 MP resolution

· Up to 16 channel IP cameras can be connected with built-in PoE inputs

· Advanced H.265+ Video Compression

· Supports iPhone、iPad、Android mobile remote monitoring

· Connectable to the third-party network cameras

· HDMI Video output at up to 4K (3840 × 2160) resolution

· 2 SATA interfaces connectable for recording and backup

· Annke Vision for easy remote view

Packaging Contents

4 X IP Camera

4 X Metal Bracket

4 X Surveillance Sign

4 X 1m Network cable

4 X Waterproof connector

4 X Mounting Screws Bag

1 X NVR

1 X USB Mouse

1 X Power Adapter

1 X 1M network cable

1 X 1.8M HDMI cable

1 X User's Manual

Panoramic 180° Ultra-Wide Coverage with Dual-Lens Fusion

Experience next-level surveillance with a seamlessly stitched 180° ultra-wide field of view in a cinematic 20:9 aspect ratio. Dual-lens technology delivers unmatched visibility with zero blind spots, ideal for large areas like backyards, squares, or campus.

Stunning 8MP Clarity with High-Sensitivity BSI Sensors

Powered by dual 1/2.5” large-format BSI sensors and premium 2.8mm@F1.6 lenses, this camera delivers crystal-clear 4096 x 1860 resolution at 20fps. Even when zoomed in, every detail remains sharp and vivid—ideal for identifying faces, license plates, and more.

Sound & Light Alarm for Active Deterrence

Stay in control with dual warning methods—siren and flashing light—that can be triggered automatically through alarm linkage or manually via the mobile app.



Choose from 12 built-in alarm sounds or upload your own custom audio for a truly personalized security response.

Smart Dual-Light Modes for Day & Night Clarity

Adapt to any lighting condition with three light modes: White Light, Infrared (IR), and Smart Dual-Light. With up to 30 meters (98 ft) of illumination range, this camera ensures clear monitoring around the clock.



In Smart mode, the camera uses IR lights to provide a black-and-white image at night to reduce light pollution. When motion—like a person or vehicle—is detected, it automatically switches to white light to deliver a full-color image for enhanced detail. Once the event ends, it seamlessly reverts to IR mode.

Real-Time Two-Way Audio for Instant Communication

Stay in control with built-in microphone and speaker that enable clear two-way talk anytime, anywhere. Whether you’re checking in on loved ones, greeting guests, or warning unwanted visitors, communicate in real time with just a tap on your phone. Hear what’s happening and speak back instantly—no extra devices needed.

IP Camera
Camera	Image sensor	2×1/2.5" Progressive Scan CMOS
	Max resolution	4K(4096 × 1840), 20: 9 picture ratio
	Main Stream	50 Hz: 20 fps (4096 × 1840) 60 Hz: 20 fps (4096 × 1840)
	Sub Stream	50 Hz：20 fps（1200 × 536，960 × 432） 60 Hz：20 fps（1200 × 536，960 × 432）
	Video compression	Main Stream: H.265+/H.265/H.264+/H.264 Sub Stream: H.265/H.264/MJPEG
	Video Bit Rate	32 Kbps to 16 Mbps
	Built-in Microphone	Built-in Microphone, record with audio
	Audio Compression	G.711/G.722.1/G.726/MP2L2/PCM/AAC-LC/MP3
	Built-in Speaker	Yes, max. sound pressure: 10 cm: 95 dB
	Lens	Dual lens: 2.8 mm
	Min. Illumination	Color: 0.005 Lux @ (F1.2, AGC ON), 0 Lux with IR
	Angle of View	Horizontal FOV: 180° ± 10°, Vertical FOV: 81° ± 10°
	Supplement Light Type	White light, IR
	Supplement Light Range	White light up to 20 m, IR light up to 30m
	Motion detection 2.0	Supoort, include Human & Vehicle detection
	Image Parameters Switch	Yes
	Image Enhancement	BLC, HLC, 3D DNR
	Wide Dynamic Range	120dB WDR
	Network Protocols	TCP/IP,ICMP,HTTP,HTTPS,802.1x,FTP,DHCP,DNS,DDNS,RTP,RTSP,RTCP,NTP,UPnP,SMTP,IGMP,QoS,IPv6,UDP,Bonjour,SSL/TLS,WebSocket, SNMP
	API	Open Network Video Interface Version 19.12
	Basic Event	Motion detection (support human and vehicle detection), video tampering, exception detection
	Smart Event	Line crossing detection, intrusion detection, region entrance detection, region exiting detection(support human and vehicle detection)
	Audio Alarm	Support(Parameters adjustable,support custom audio, can be triggered from APP)
	Region of Interest (ROI)	1 fixed region for main stream
	General Function	IP Address Filter
General	Housing	Metal&Plastic, White color
	Operating Power	PoE (802.3af)，12 VDC ± 25%,Ø 5.5 mm coaxial power plug
	Ethernet Interface	1 RJ45 10 M/100 M self-adaptive Ethernet port
	Storage	Built-in micro SD/SDHC/SDXC slot, up to 256 GB, support NAS, NVR
	DC12V output	DC12 V，100 mA output
	Audio input/output	1 input (line in),1 output (line out)
	Alarm nput/output	1 input, 1 output (max. 24 VDC, 1 A)
	Hardware Reset	Yes
	Operating Temperature	-22 °F – 140 °F /-30 °C – 60 °C
	Indoor/Outdoor	Indoor/Outdoor
	Weatherproof Rating	IP66
	Dimension (L x W x H)	138.1 × 101.1 × 120.4 mm
	Weight	Approx. 600 g (1.32 lb.)

NVR
Video & Audio	Video Compression	H.264+/H.264/H.265/H.265+/MPEG4
	IP Video Input	16CH PoE
	Video Output	HDMI up to 4K, VGA up to 1080p
	Audio Input/Output	1/1 RCA
	Incoming Bandwidth	160 M
	Max. Recording Resolution	Up to 8MP (3840 X 2160)
	Max. Playback Resolution	Up to 8MP (3840 X 2160)
	Max. Playback Channel	16CH
	Max. Playback Capacity	1-ch@8 MP (30 fps)/5-ch@1080p (30 fps)
	ONVIF Protocols	Support
Hard Drive	HDD	2 SATA Interface
	HDD Capacity	Up to 8 TB Capacity for each disk
External Interface	Network Interface	RJ45 X1 (10/100/1000 M)
	PoE	16 Ports (IEEE802.3af/at)
	Alarm Input/Output	-
	RS485	-
	USB	2X USB 2.0
General	Operating Power	AC 100-240 V
	Power Consumption	≤15 W (Without HDD and PoE)
		PoE: Max. 25.5W for Single Port
	Working Temperature	14 °F — 131 °F/-10 °C — 55 °C
	Dimensions (W X H X D)	15.2” X 12.4” X 2.0”/385 X 315 X 52 mm
	Weight (Without Hard Disk)	6.6 lbs./3 kg
