SPECIFICATIONS



Power : Fuel /Oil

Structure: Multi purpose Water Pump

This product can be widely used in irrigation, landscaping, urban maintenance, drainage, water supply, reservoirs, swimming pools, and other places.

Material: Carbon Steel, Aluminum Alloy, Plastic

Process: Plastic Spraying, Baking Paint

Color: Red+Black

Assembly Required: Yes

Mount Type: floor-mounted

Cooling Method: Air Cooling+Built-In Fan

Engine Type: 2-Stroke Single Cylinder Gasoline Engine

Fuel Type: #90 and Above Unleaded Gasoline (Not Included)

Oil Type: Two-Stroke Garden Machinery Special Oil (Not Included)

Startup method: Hand-pulled

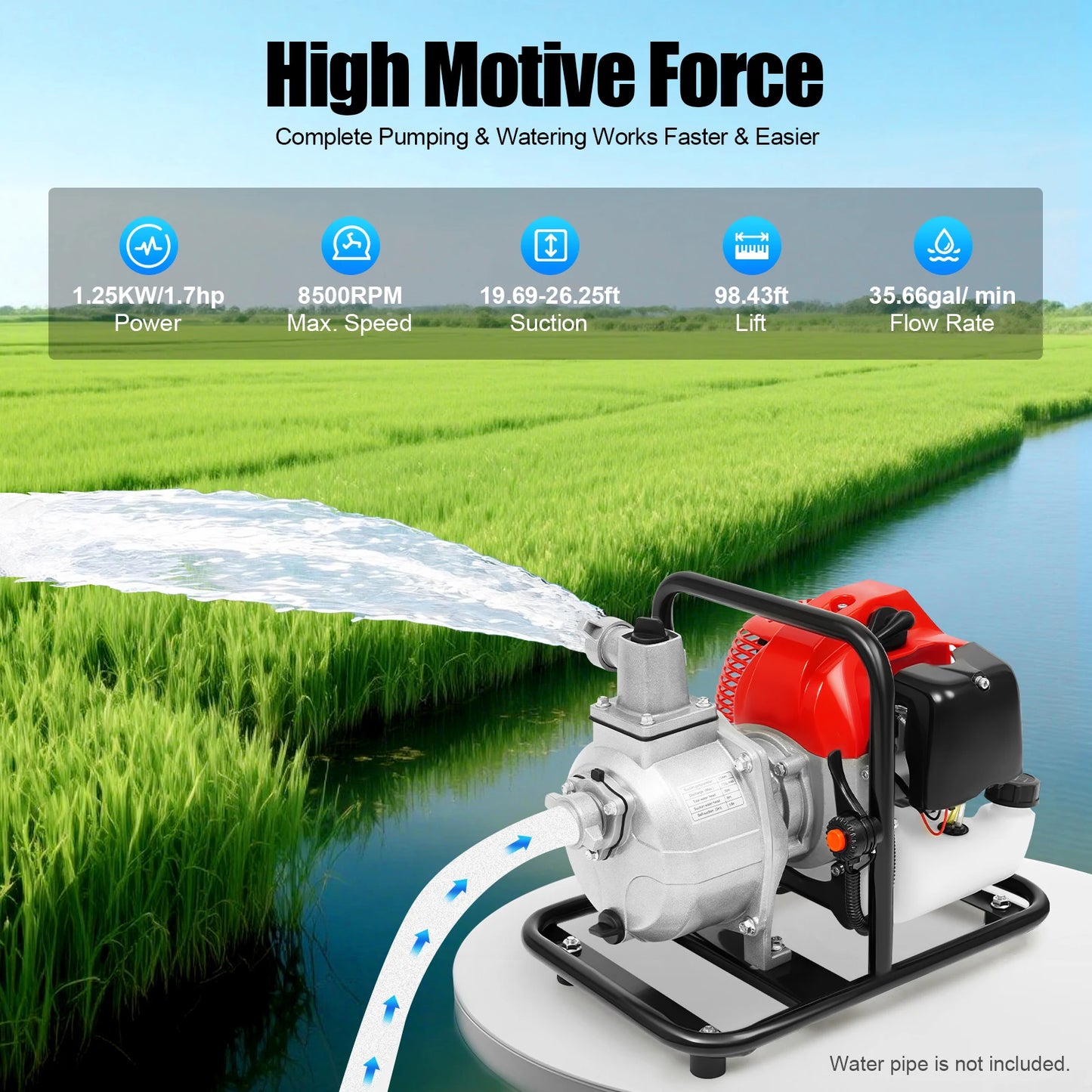

Power: 1.25KW/1.7hp

Max. Speed: 8500RPM

Displacement: 43CC

Gasoline Oil Ratio: 25:1

Fuel Consumption: ≤610g/1.34lbs/KW.h

Suction: 6-8m/19.69-26.25ft

Lift: 30m/98.43ft

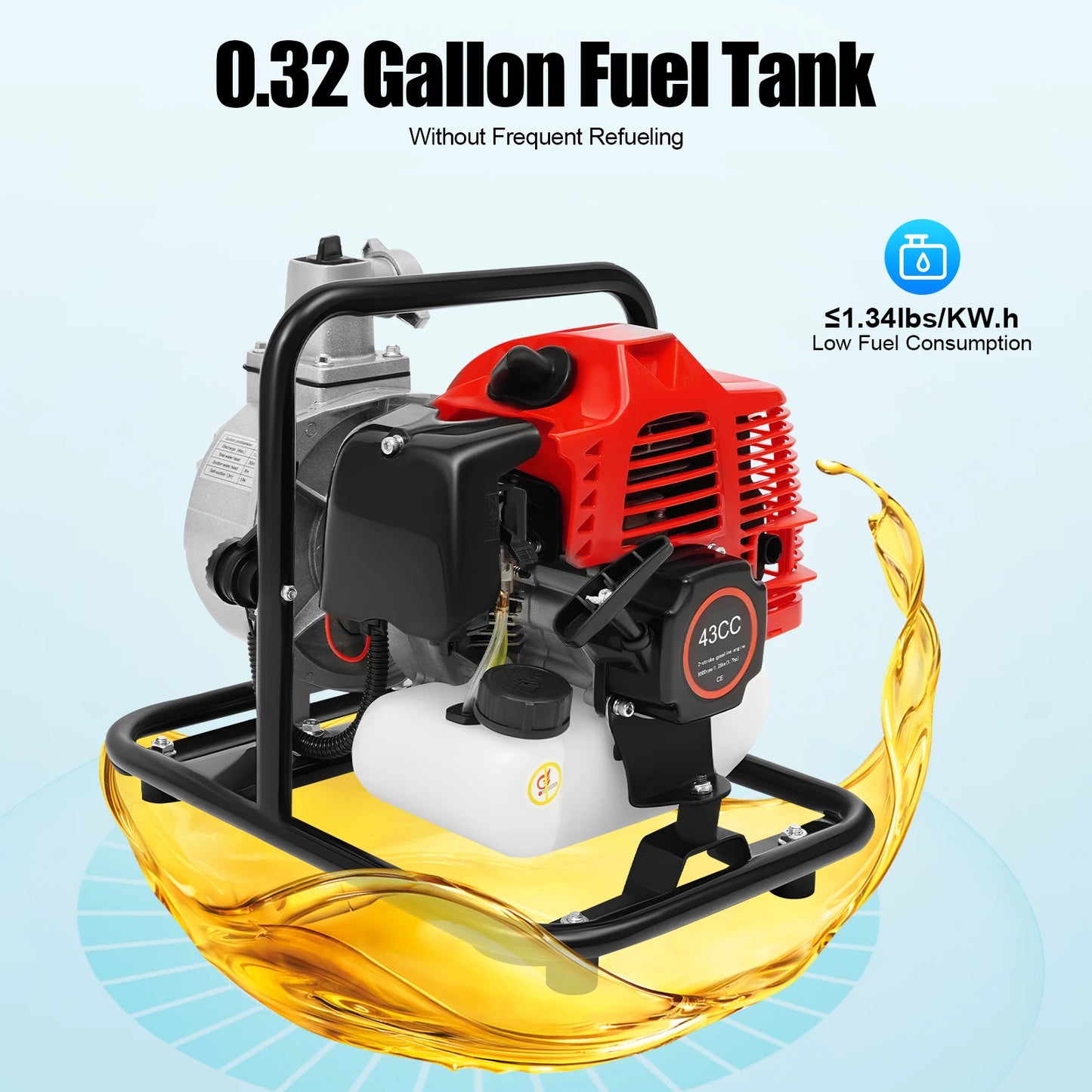

Fuel Tank Capacity: 1200ml/0.32gal

Flow Rate: 135L/35.66gal/ min

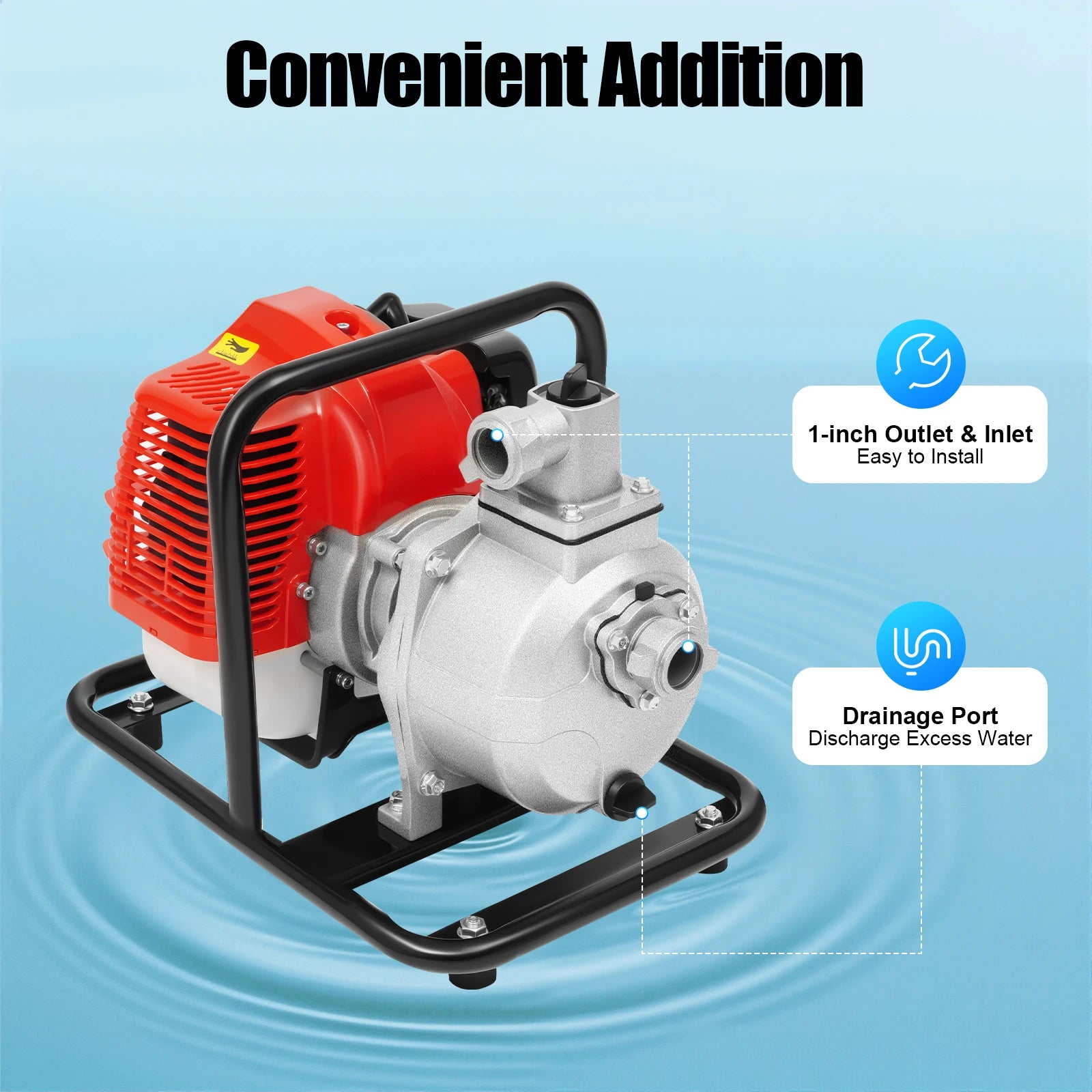

Inlet/Outlet Diameter: 25mm/1in

Self-suction(3m/9.84ft): ≤8s

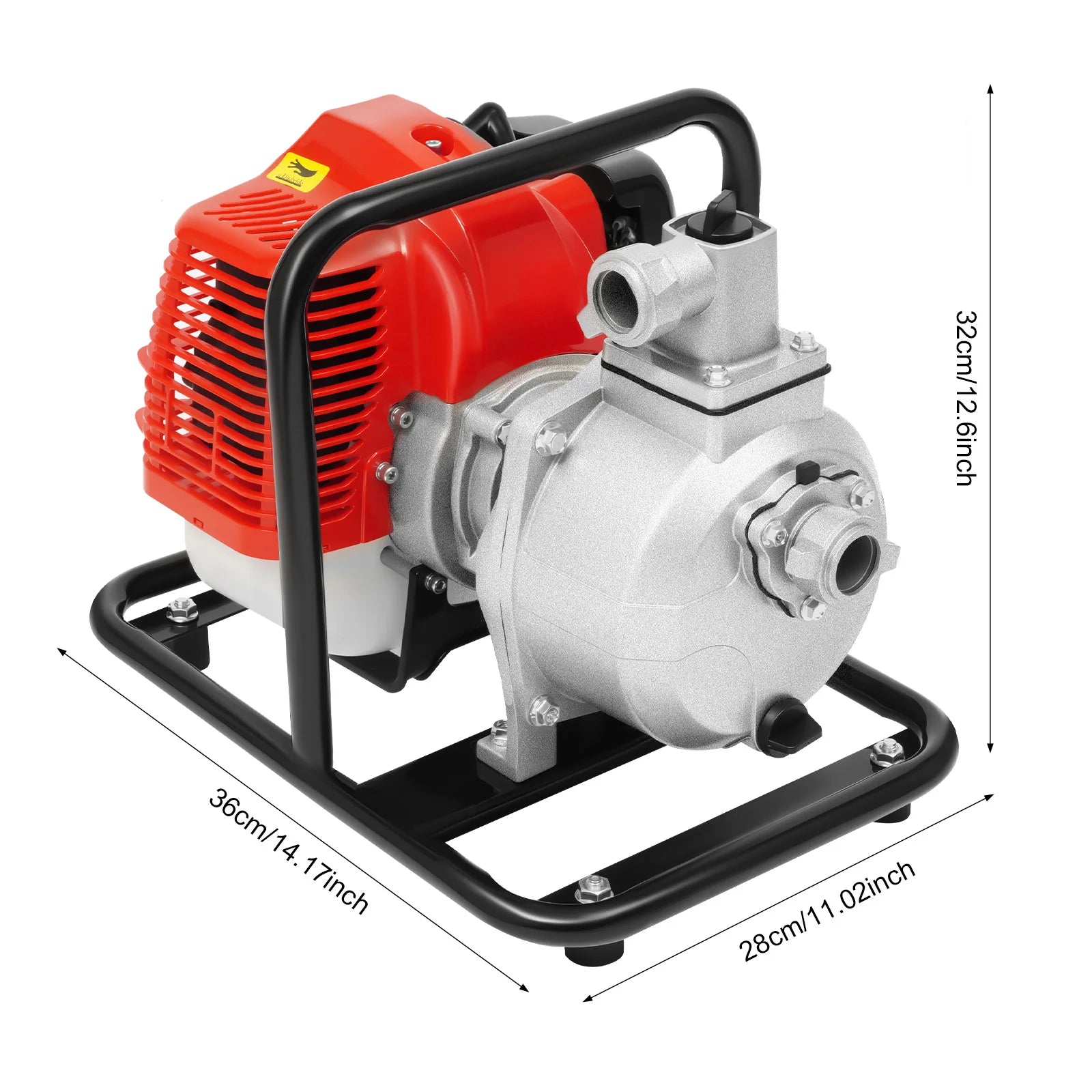

Product Size: 36*28*32cm/14.2*11*12.6in

Package Size: 43*33*33cm/16.93*12.99*12.99in

Gross Weight: 9.5kg/20.94lbs

Net Weight: 7.5kg/16.53lbs

Package Included

1 * 2-stroke Engine Water Pump

1 * Funnel

1 * Filter

1 * Oil Bottle

1* Air Cleaner

1 * English Manual

Other Assembly Accessories
